Vector Optics One Piece Cantilever High Picatinny Scope Mount 25.4mm 1"

Vector Optics One Piece Cantilever High Picatinny Scope Mount 25.4mm 1"

The Vector Optics 25.4mm One Piece Cantilever High Picatinny Scope Mount is a robust, high-profile mounting solution designed for rifle scopes with a 25.4mm / 1-inch tube. Its cantilever configuration positions the optic forward while maintaining a secure connection to a compatible Picatinny rail, making it particularly suitable for platforms where mounting space and correct eye relief are important.

With a generous 50mm / 1.97-inch centre height, the SCTM-66 provides an elevated scope position that Vector Optics specifically designed to offer a comfortable sighting position, including when wearing a protective mask.

One-Piece Cantilever Design

The rigid one-piece construction combines both scope rings and the Picatinny mounting base into a single unit.

This provides a solid platform for the optic while the forward cantilever helps achieve suitable scope positioning without requiring the mount itself to extend excessively far along the receiver rail.

Each ring uses a four-screw clamping system, providing even and secure pressure around the scope tube when correctly installed.

25.4mm / 1-Inch Scope Compatibility

The mount is specifically designed for scopes featuring a 25.4mm / 1-inch main tube.

With a 50mm bottom-to-centre height, the SCTM-66 sits considerably higher than conventional low or medium scope rings.

This can be particularly useful on AR-style platforms and other setups where a higher optic position provides more comfortable alignment.

Integrated Picatinny Accessory Rail

An additional Picatinny rail is incorporated into the top of one scope ring, providing a convenient mounting point for a compatible secondary accessory.

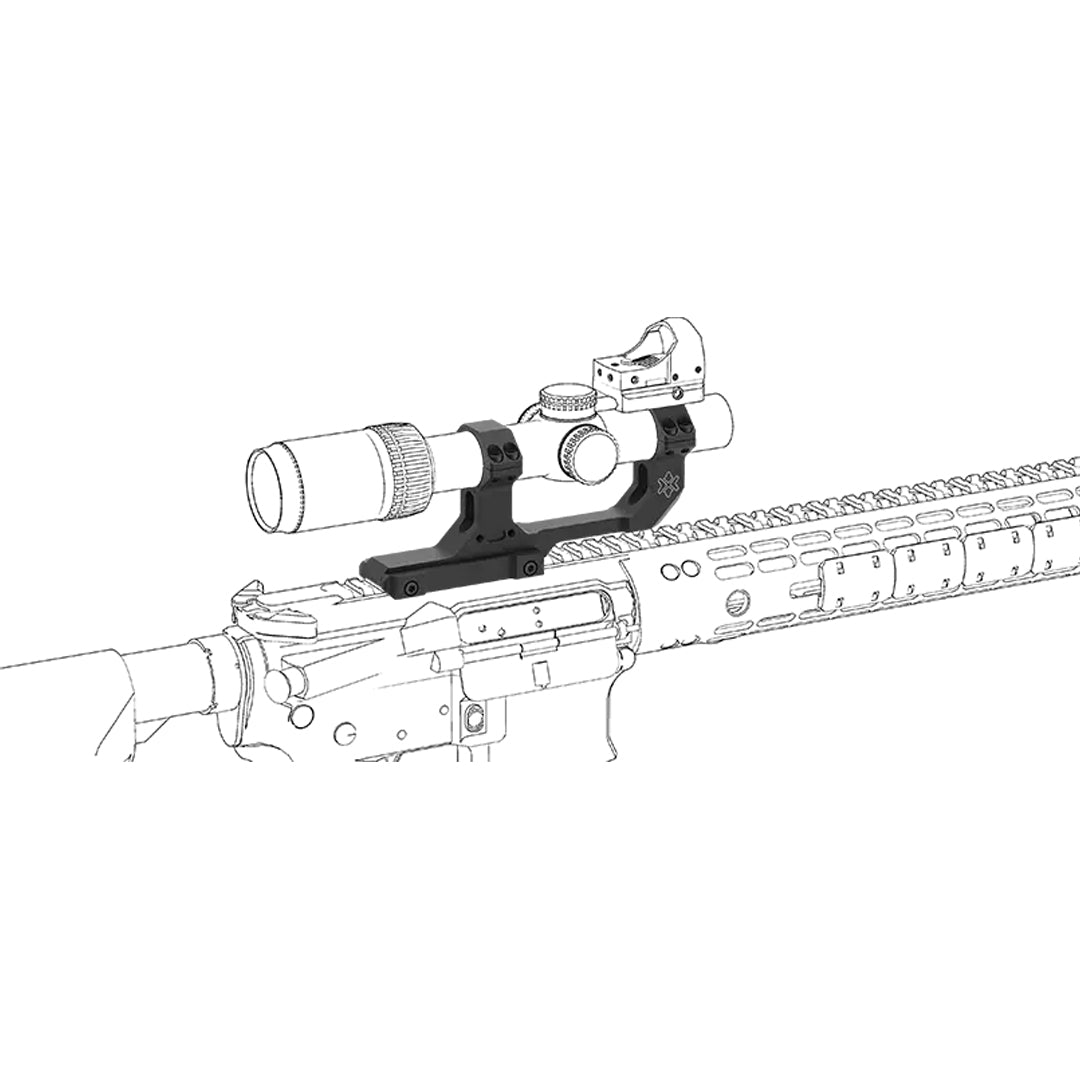

This can be used to create a compact piggyback-style setup with a suitable red dot sight or other lightweight Picatinny-mounted accessory.

Lightweight Aluminium Construction

Vector Optics manufactures the SCTM-66 from 6063-T6 aluminium alloy, providing a strong mounting platform while keeping the overall weight to approximately 163g / 5.75oz.

The mount is finished in Matte Black, complementing a wide variety of scopes and rifle configurations.

Features

High-profile one-piece cantilever scope mount

Designed for 25.4mm / 1-inch scope tubes

Fits compatible Picatinny rails

Cantilever design allows forward positioning of the scope

Particularly suited to AR15/M4-style mounting configurations

50mm / 1.97" centre height from rail base to scope centre

High mounting position suitable for use with protective masks

Secure four-screw scope rings

Integrated Picatinny accessory rail on top of the ring

Suitable for mounting a compatible secondary red dot or accessory

Manufactured from 6063-T6 aluminium alloy

Overall height: 76mm / 2.99"

Overall length: 156mm / 6.14"

Mounting base length: 80mm / 3.15"

Weight: approximately 163g / 5.75oz

Recommended torque: 18–22 in-lbs / 2.0–2.5 N·m

Finish: Matte Black

Manufacturer: Vector Optics

Model / SKU: SCTM-66

Hex key included

Please Note: This mount is specifically designed for 25.4mm / 1-inch scope tubes and compatible Picatinny rails.

Check your scope tube diameter and available rail space before ordering.
