Prometheus Airsoft Gearbox Shim Set 25 Shims / 5 Sizes
Precisely set up your AEG gearbox with the Prometheus Airsoft Gearbox Adjustment Shim Set, a high-quality tuning and maintenance kit designed for accurate positioning of gears inside compatible Airsoft electric gun gearboxes.
Manufactured by Prometheus / LayLax, the set contains 25 precision shims in five different thicknesses, allowing an Airsoft technician to fine-tune gear spacing to achieve smooth rotation, correct gear engagement and appropriate clearance within the gearbox.

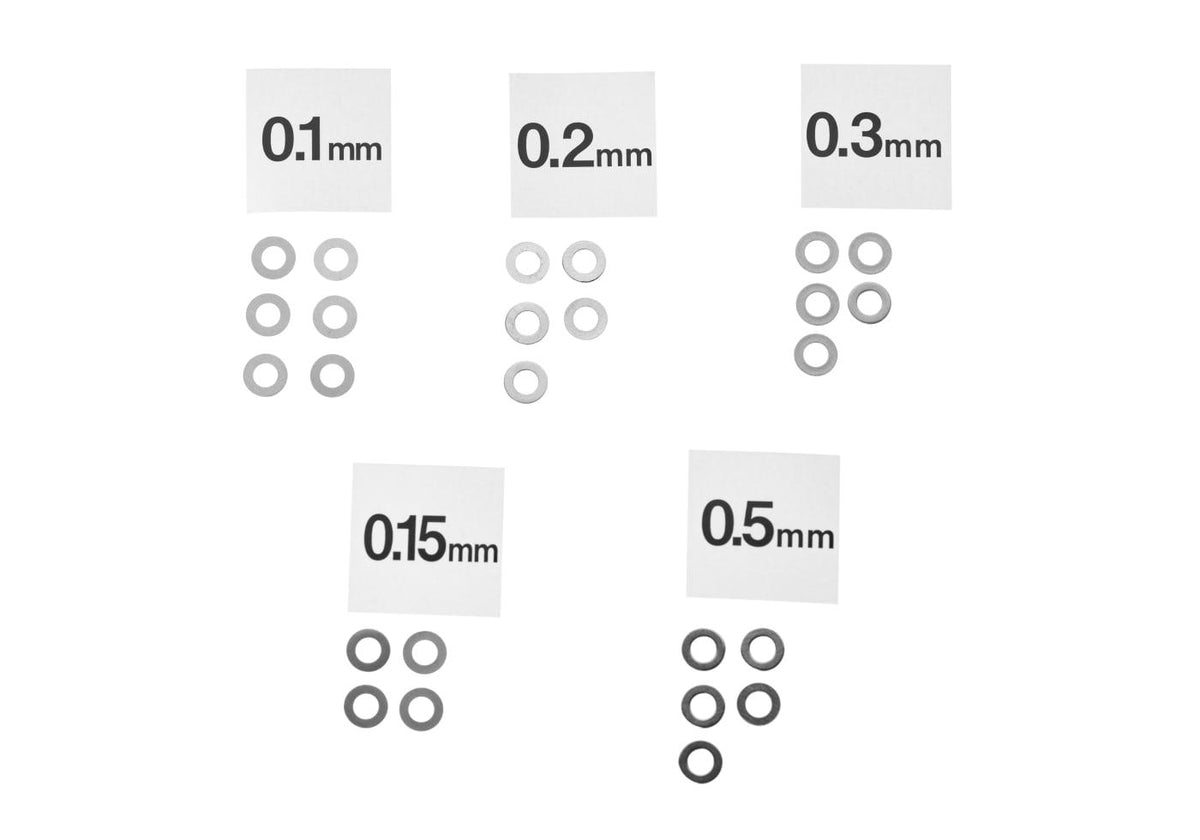

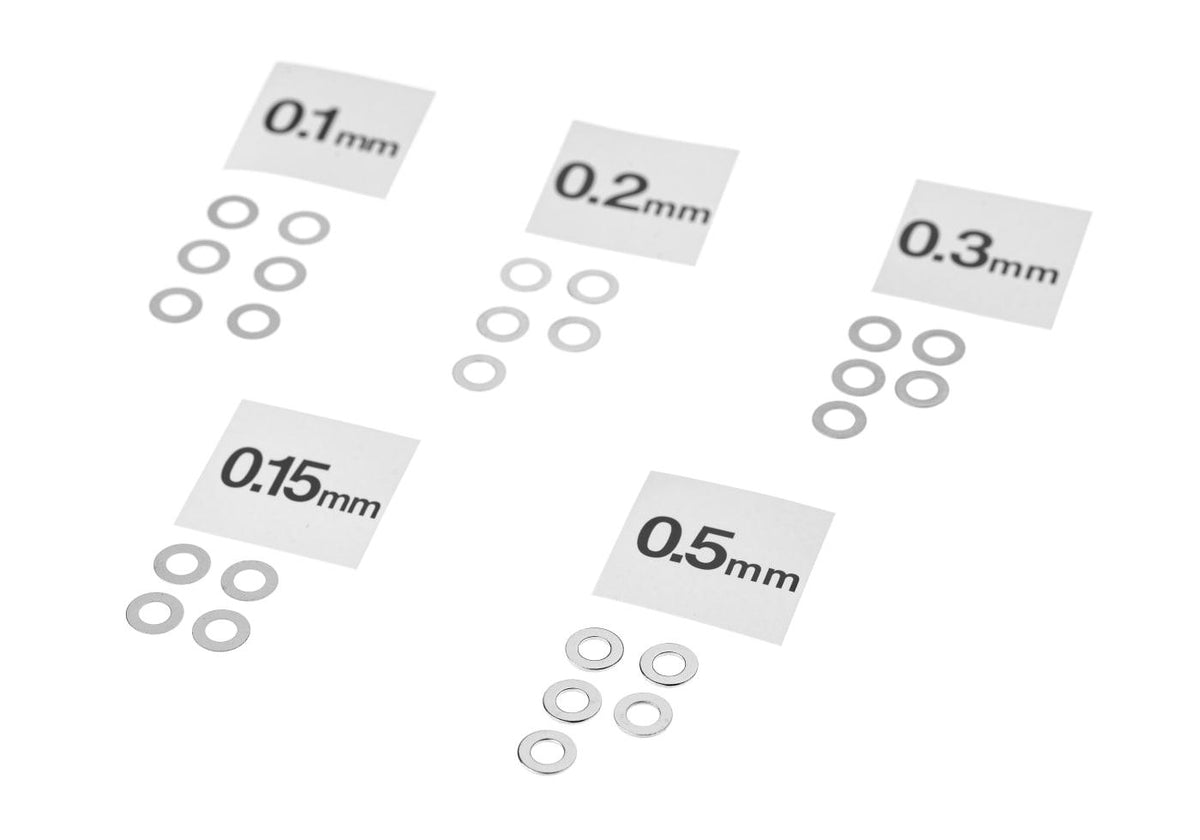

Five Shim Thicknesses
The set includes five different shim sizes, providing plenty of adjustment combinations for accurately positioning the bevel, spur and sector gears:
0.10mm – 5 shims
0.15mm – 5 shims
0.20mm – 5 shims
0.30mm – 5 shims
0.50mm – 5 shims
That's a total of 25 gearbox shims, allowing individual thicknesses to be used or combined to achieve the required spacing.
3.1mm Inner / 5.8mm Outer Diameter
Each shim has an inner diameter of 3.1mm and an outer diameter of 5.8mm.
The compact 5.8mm outside diameter is specifically designed to avoid unwanted contact with the flange of compatible ball bearings, making the set particularly useful when setting up AEG gearboxes fitted with bearing systems.
Compatible AEG Gear Systems
LayLax officially lists the shim set as compatible with:
Tokyo Marui Standard Electric Gun genuine gears
Tokyo Marui Next Generation Electric Gun genuine gears
Prometheus EG Hard Gear Series
Other compatible Airsoft gears featuring 3mm diameter gear shafts
Features
Precision Airsoft AEG gearbox shim set
Designed for accurate gearbox gear adjustment
Helps achieve correct gear positioning and clearance
Ideal for gearbox builds, upgrades and servicing
Useful for bevel, spur and sector gear adjustment
Inner diameter: 3.1mm
Outer diameter: 5.8mm
Compatible with gears featuring approximately 3mm shafts
Compatible with ball bearings with an outer diameter of 5.8mm
Suitable for Tokyo Marui Standard and Next Generation AEG genuine gears
Compatible with Prometheus EG Hard Gears
Brand: Prometheus
Manufacturer: LayLax
The Prometheus Gearbox Adjustment Shim Set gives Airsoft technicians a useful selection of five precision thicknesses for accurately setting up an AEG gearbox. With 25 shims ranging from an ultra-fine 0.10mm through to 0.50mm, different combinations can be used to achieve the required gear spacing for a particular gearbox build.
Correct shimming can help achieve smoother gear rotation, minimise unnecessary lateral movement and ensure the gears are correctly positioned within the gearbox shell.
